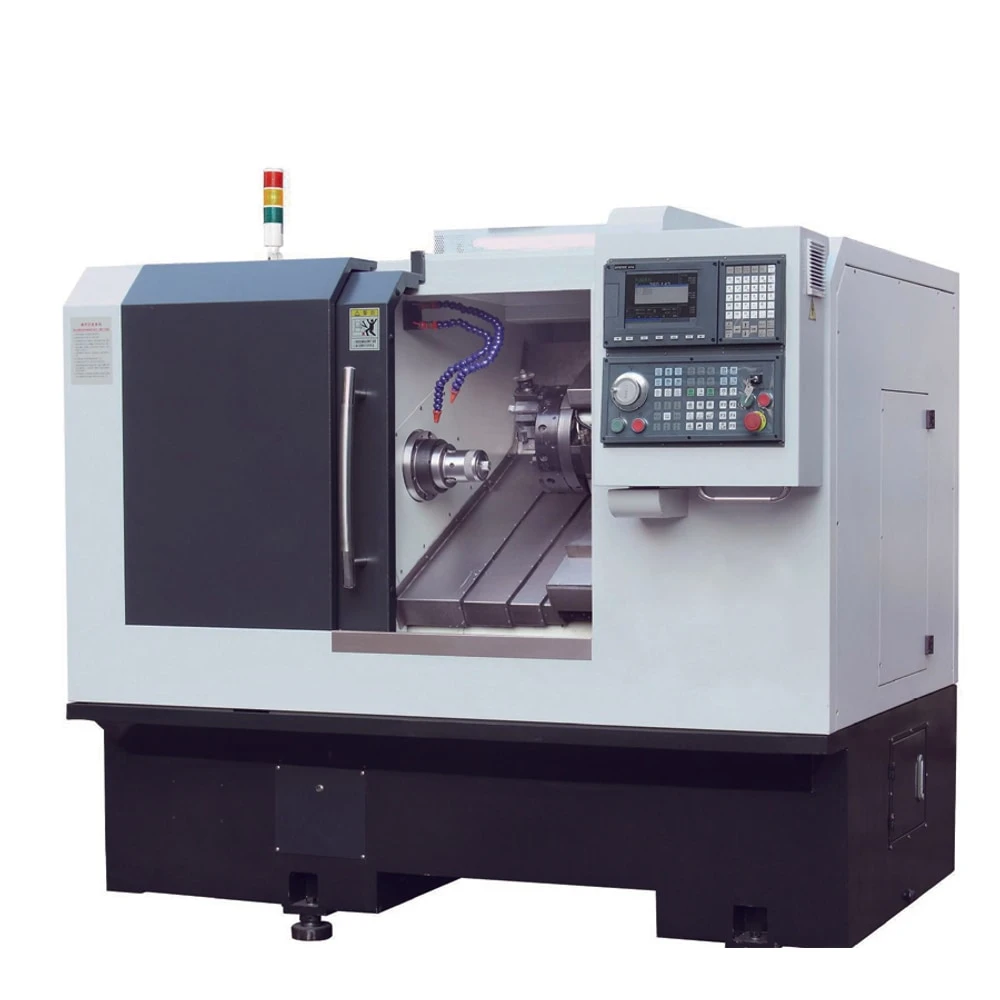

TCK52 Heavy-Duty Slant Bed Turning Center
The TCK52 is an upscaled, heavy-duty slant bed turning center engineered for larger diameter flanges, valves, drive shafts, and demanding steel alloy turning. Features an A2-8 high-torque spindle, 10-inch chuck, and 12-station servo turret.
Factory benchmark measurements inspected using calibrated laser interferometry and granite master squares.
Factory calibrated tolerances in accordance with ISO 230-2 & JIS B6338
| Max Swing Over Bed | Ø520 mm |
|---|---|
| Max Turning Diameter | Ø420 mm |
| Max Turning Length | 750 / 1000 mm |
| Slant Bed Angle | 45° True Slant Bed |
| Spindle Nose Type | A2-8 |
| Hydraulic Chuck Size | 10 Inch (Ø250 mm) |
| Spindle Bore Diameter | Ø86 mm |
| Max Bar Capacity | Ø75 mm |
| Spindle Speed Range | 40 - 3,500 RPM |
| Spindle Motor Power | 11 / 15 kW (Optional 18.5 kW) |
| X-Axis Travel | 230 mm |
| Z-Axis Travel | 800 / 1050 mm |
| Rapid Traverse (X/Z) | 24 / 24 m/min |
| Turret Type | 12-Station Servo Turret |
| Positioning Accuracy | ±0.005 mm |
| Repeatability | ±0.003 mm |
| Net Weight | 5,100 kg |
| CNC Controller Options | FANUC 0i-TF, SIEMENS 828D, GSK, SYNTEC |
The DAHAN TCK52 provides the additional swing, torque, and bed length required for heavier industrial shaft and disc manufacturing. Whether turning forged flanges, oilfield couplings, or heavy cast iron bearing rings, the machine maintains thermal equilibrium and high metal removal rates.
Direct factory FOB Qingdao and CIF pricing delivered within 2 hours. Send your workpiece drawings or specify target machining parameters.
